Increased oil and gas influx by 40-100%

Scroll down

Retrievable whipstock, re-entry to each lateral

Anchor with re-entry guide

Pre-planned trajectory of the channel

Compact double-bend mud motor

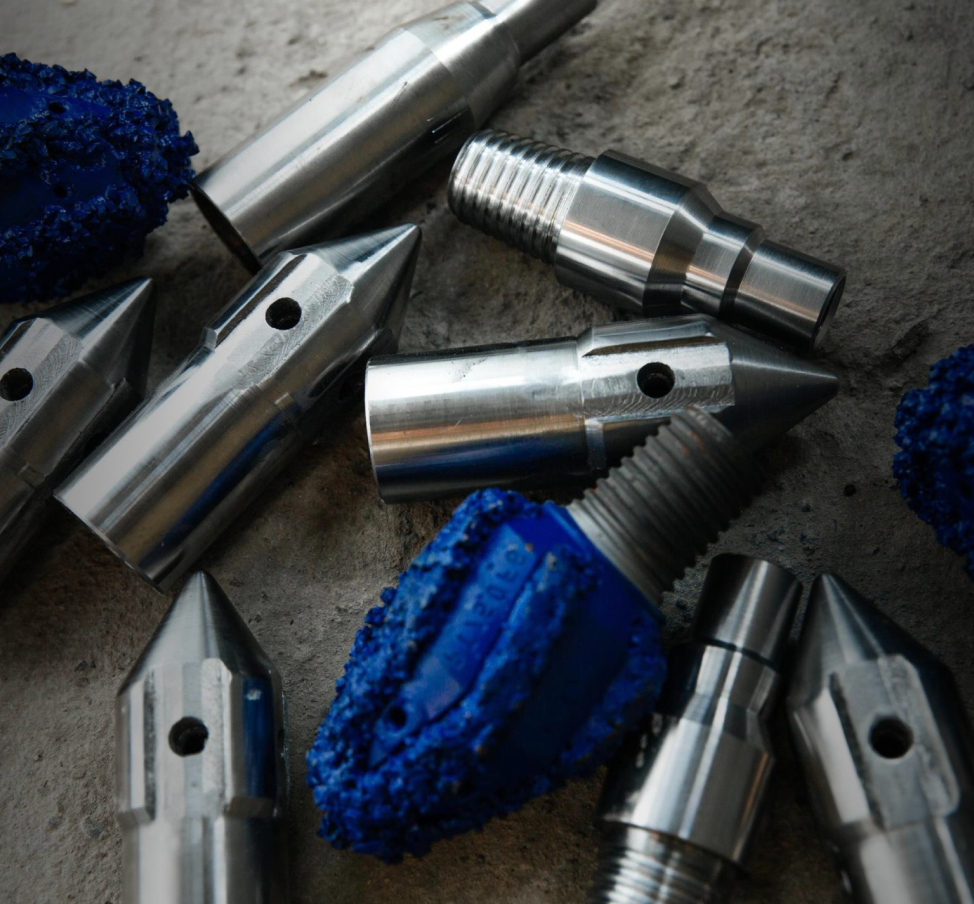

Mechanical PDC drilling

Radial laterals

1-4

At the same TVD

Leteral length

80

ft limit

Lateral OD

2-3/4

inches

Dogleg severity

215

deg per 100 ft

Pre-planned lateral trajectory

Re-entry to each lateral

Applicable in thin pay zones

Access to undamaged zone of formation

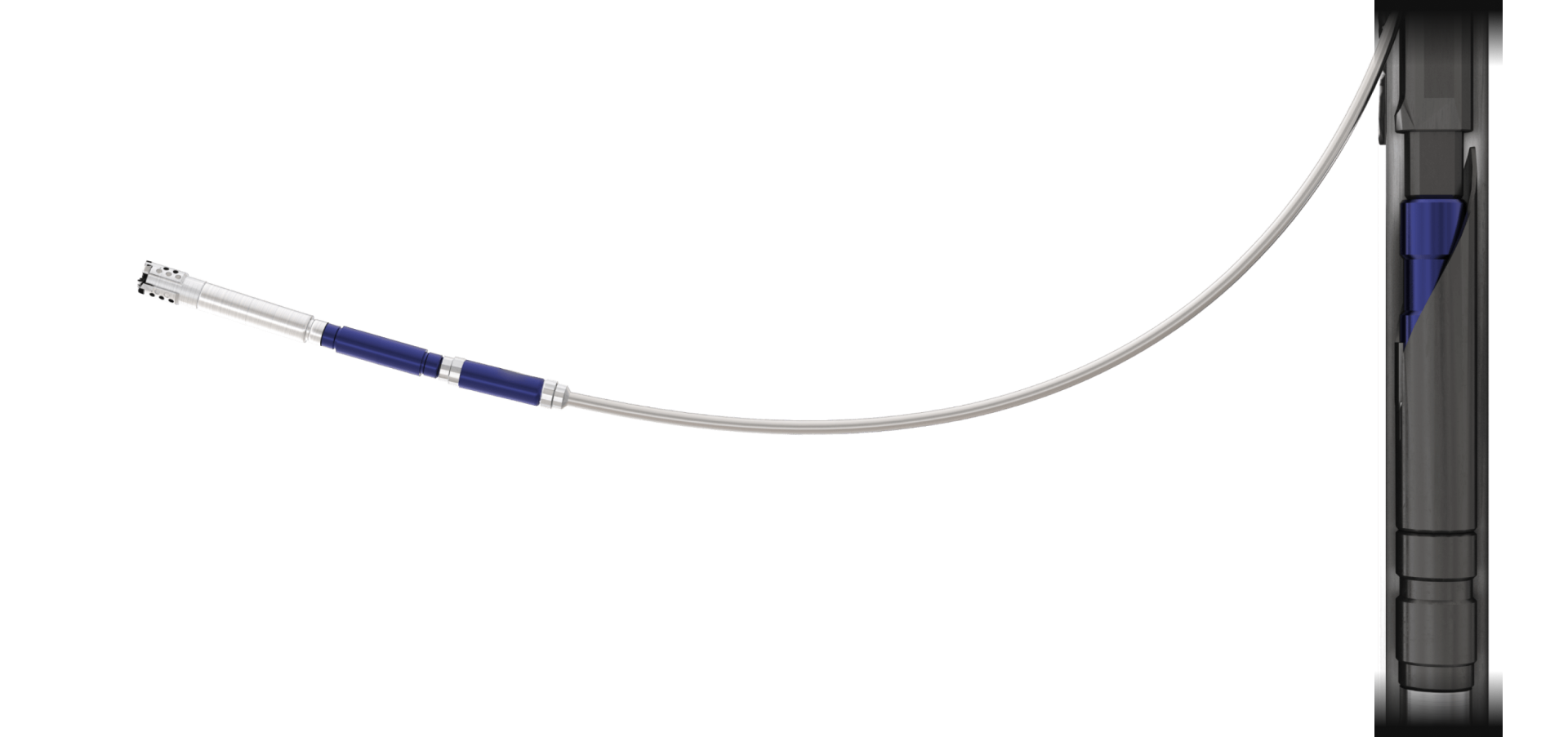

Creating a lateral

Anchor setting

Window milling

Drilling
